Filling Range





≦20 pcs/min

A perfect solution for 3D Printer Liquid Material from bottle unscrambler, filler, capper & labeler, it brings your product more productive. W serials are net weight filling machine capable of filling various viscosities liquid at the speed of 20 pcs/min based on 1L. Net weight filler ensure the high accuracy, and bottle transportation device allows handle demanding forms of packagaing. The line is easy and fast changeover to another product (in less than 30 min).

3D Printer Liquid Filling Line Solutions

Key Features

  • Robust construction in stainless steel.
  • Mitsubishi PLC controlled with touch screen panel.
  • Easy adjusting hand wheels for quick changeover.
  • 50 job memory for easy set-up and recall.
  • Bottle transportation device move bottles accurately.
  • Capable capping type: plastic screw cap.
  • Auto Pick & Place device is designed to handle most cap types, and driven by servo motor.
  • Capping chuck with servo drive for adjustable torque values.
Liquid Packaging Line by KWT
Chemical Liquid Filling Line by KWT
Chemicals Filling Equipment
KWT Chemical Filling Machines

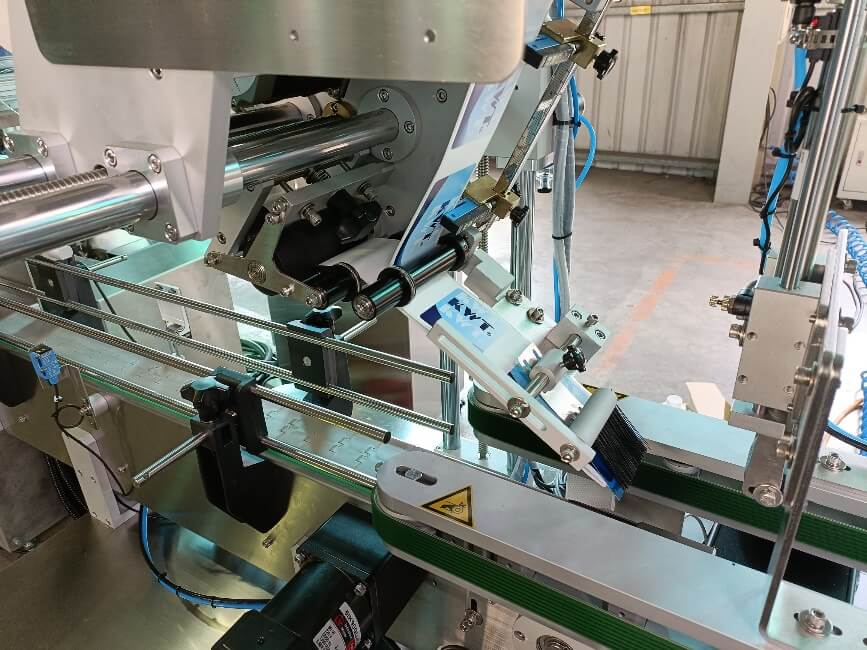

Bottle Labeling Machine
Automatic Bottling and Labeling Machine


  1. Bottle Unscrambler
    • Safety Guard
    • Sorter disc for different size of bottle

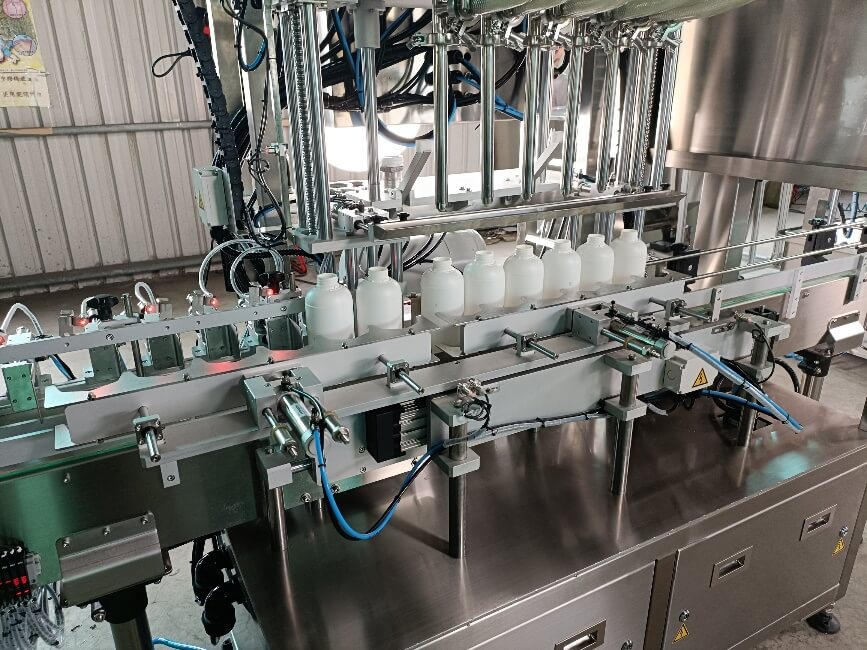

  2. Filling Machine
    • Safety Guard
    • Nozzle up & down action driven by servo motor
    • Conveyor upgrade
    • Product Feeding Turn Table

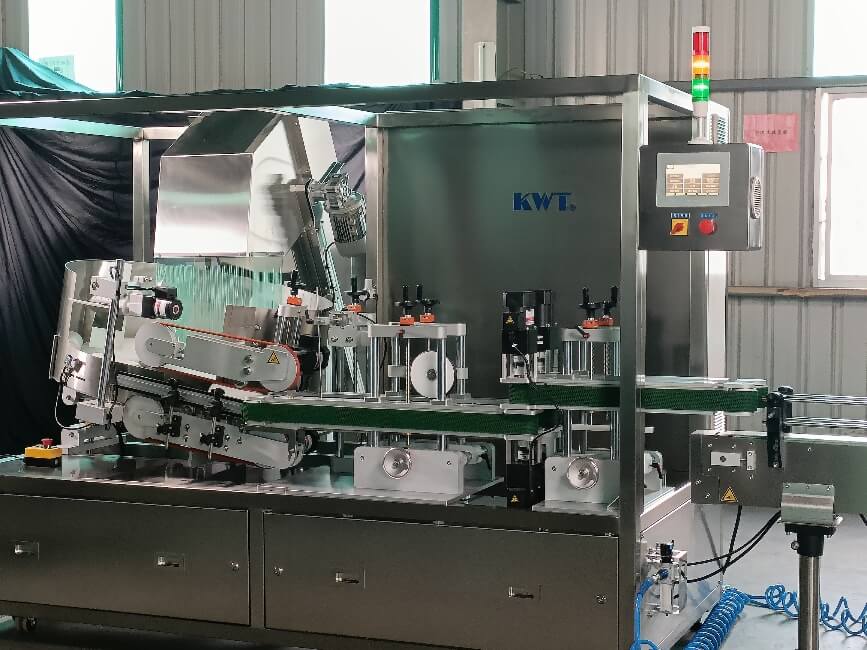

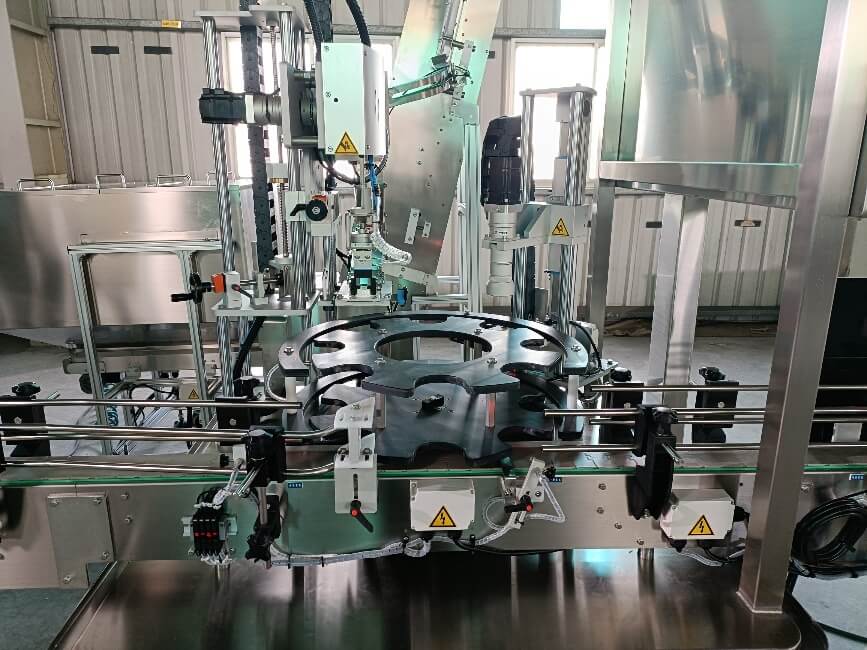

  3. Capping Machine
    • Safety Guard
    • Cap hopper & elevator
    • Vibrator bowl, cap chute, gripper and chuck for different size of cap
    • Conveyor upgrade
    • Inspection: missing cap / cock cap / missing foil liners


Nozzles Up to 6 pcs
Fill Volume Range 1000ml
Filling Pump Net Weight
Nozzle Size Dia. 25.4mm
Container Dia. 87mm
Container Height 245mm
Capping Machine 180AS
Number of Capping Chuck 1 capping chuck
Label Type Adhesive label
Label Size L. 230 x H. 96mm
Conveyor Width 82.5mm

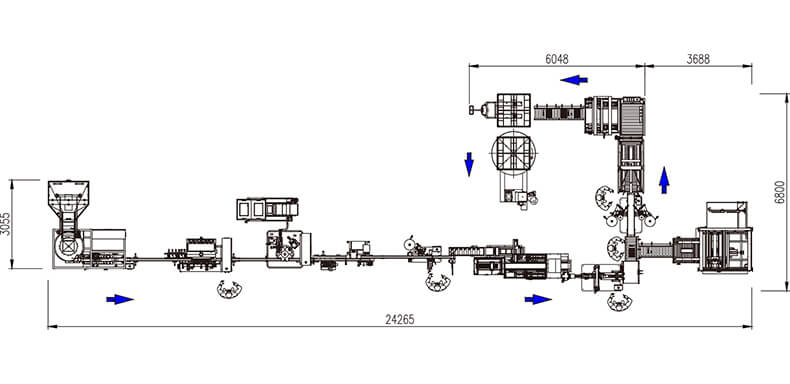

Conveyor Length 24265mm
