Agricultural Liquid Filling Line

Filling Range

100ml-1000ml

Nozzles

6

Speed

≦30 pcs/min

Automatic production line for filling, capping and labeling of pesticides. PS serials are piston pump filling machine capable of filling various viscosities and foamy liquids at the speed of up 30 pcs/min. Volumetric piston filler ensure the high accuracy, each piston pump are actuated by their own servo motor. The line is easy and fast changeover to another product (in less than 30 min).

Key Features
Options
Specifications
Video

Key Features

  • This type of piston pump is suited for pesticides.
  • Robust construction in stainless steel.
  • Mitsubishi PLC controlled with touch screen panel.
  • Easy adjusting hand wheels for quick changeover.
  • 50 job memory for easy set-up and recall.
  • Neck grabber for different sizes of container.
  • Capable capping type: plastic screw cap.
  • Manual or automatic feeding of cap.
  • Auto Pick & Place device is designed to handle most cap types, and driven by servo motor.
  • Capping chuck with servo drive for adjustable torque values.
  • Labeling – automatic labeling machine to label flat containers (front / back).

Options

  1. Filling Machine
    • Safety Guard
    • Nozzle up & down action driven by servo motor
    • Filling nozzle (Dia. 25.4mm) for big neck
    • Liquid feeding pump
    • Conveyor upgrade
    • Agitator
    • Product Feeding Turn Table
  2. Capping Machine
    • Safety Guard
    • Cap hopper & elevator
    • Vibrator bowl, cap chute, gripper and chuck for different size of cap
    • Conveyor upgrade
    • Inspection: missing cap / cock cap / missing foil liners
  3. Labeling Machine
    • Coding system: hot stamp or thermal-transfer printer
    • Conveyor upgrade
    • Accumulation turn table

Specifications

Nozzles Up to 6 pcs
Fill Volume Range 100ml-1000ml
Filling Pump Piston Pump
Nozzle Size Dia. 19mm (Standard)
Container Thickness Range 40mm-150mm
Container Length Range 50mm-200mm
Container Height Range 120-300mm
Capping Machine 151AS / 180AS
Number of Capping Chuck 1 capping chuck
Label Type Pressure Sensitive Label
Label Size 20-180mm in height, 20-250mm in length
Label Roll Size I.D. 76 mm ,
O.D. 350 mm (Max.)
Conveyor Width 82.5 , 114 , 152mm

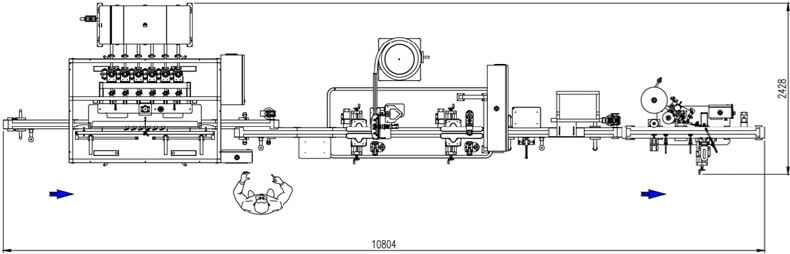

Conveyor Length 10,804mm
