Juice Filling Line

Filling Range

500ml-5L

Nozzles

6

Speed

≦30 pcs/min

Automatic production line for rinsing, filling, capping and labeling for free flowing liquid items. R serials are rotary lobe pump filling machine capable of filling liquid with low to medium viscosities and are perfect for products that foam. They are designed to handle all types of rigid plastic and glass containers, R serials filling machines are based on heavy-duty stainless steel frames with all contact parts made of food grade materials. The line is easy and fast changeover to another product (in less than 30 min).

Juice Packaging Machine and Filling Line
Key Features
Options
Specifications
Video

Key Features

  • Auto rinsing machine is air type.
  • This type of rotary lobe pump is suited for thin food product.
  • Robust construction in stainless steel.
  • Mitsubishi PLC controlled with touch screen panel.
  • Easy adjusting hand wheels for quick changeover.
  • 50 job memory for easy set-up and recall.
  • Neck grabber for different sizes of container.
  • Capable capping type: plastic screw cap.
  • Manual or automatic feeding of cap.
  • Auto Pick & Place device is designed to handle most cap types, and driven by servo motor.
  • Capping chuck with servo drive for adjustable torque values.
  • Labeling – automatic labeling machine to label flat / oval / cylindrical containers (front / back / wrap-around).

Options

  1. Rinsing Machine
    • Bottle Clamping Tools for different size of bottle
    • Conveyor upgrade
    • Product Feeding Turn Table
  2. Filling Machine
    • Safety Guard
    • Nozzle up & down action driven by servo motor
    • Filling nozzle (Dia. 12.7mm) for small neck
    • Liquid feeding pump
    • Agitator
    • Conveyor upgrade
  3. Capping Machine
    • Safety Guard
    • Cap hopper & elevator
    • Vibrator bowl, cap chute, gripper and chuck for different size of cap
    • Conveyor upgrade
  4. Labeling Machine
    • Angle adjustment of labeling head
    • Transparent Label Sensor
    • Upgrade to oval shape bottle alignment
    • Push & Press attachment
    • Coding system: hot stamp or thermal-transfer printer
    • Conveyor upgrade
    • Accumulation turn table

Specifications

Nozzles Up to 6 pcs
Fill Volume Range 500ml-5L
Filling Pump Rotary Lobe Pump
Nozzle Size Dia. 19mm (Standard)
Container Thickness Range 40mm-150mm
Container Length Range 50mm-200mm
Container Height Range 140-370mm
Capping Machine 151 / 151AS
Number of Capping Chuck 1 capping chuck
Label Type Pressure Sensitive Label
Label Size 20-180mm in height, 20-250mm in length
Label Roll Size I.D. 76 mm ,
O.D. 350 mm (Max.)
Conveyor Width 82.5 , 114 , 152mm

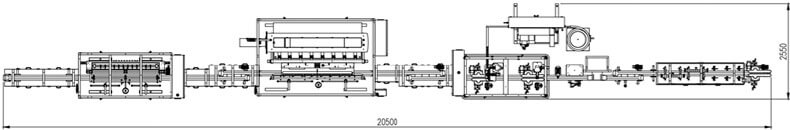

Conveyor Length 20,500mm
