Puck Filling Line For Liquid Cosmetic

Filling Range

120ml-750ml

Nozzles

4

Puck Size

150x150mm

Speed

≦40 pcs/min

A full line for filling, capping and labeling for lotion, conditioners, shampoo and any other medium to viscous product . KWT volumetric piston pump works with various types and shapes of bottle. The puck system accept all container shapes and sizes which ensure the production runs smoothly with any shape package, fast and easy changeover to another product. Dosing range is from 120ml to 750ml, the productivity up to 40 pcs /min.

Key Features
Options
Specifications

Key Features

  • Piston pump is suited for viscous product.
  • Robust construction in stainless steel.
  • Mitsubishi PLC controlled with touch screen panel.
  • Easy adjusting hand wheels for quick changeover.
  • 50 job memory for easy set-up and recall.
  • Capable capping type: plastic screw cap, trigger cap, pump cap.
  • Manually apply caps.
  • Capping roller utilize servodrive to control the capping process and to quick change over to another format.
  • Automatic de-puck device remove filled containers from puck and transport to the labeling machine.
  • Labeling – automatic labeling machine to label flat / oval containers (front / back).

Options

  1. Filling Machine
    • Safety Guard
    • Nozzle up & down action driven by servo motor
  2. Capping Machine
    • Safety Guard
    • Inspection: missing cap / cock cap
  3. Labeling Machine
    • Angle adjustment of labeling head
    • Transparent Label Sensor
    • Upgrade to oval shape bottle alignment
    • Push & Press attachment
    • Coding system: hot stamp or thermal-transfer printer
    • Missing Label Detector

Specifications

Nozzles Up to 4 pcs
Fill Volume Range 120ml-750ml
Filling Pump Piston Pump
Nozzle Size Dia. 12.7mm
Container Thickness Range 35mm-70mm
Container Length Range 40mm-100mm
Container Height Range 120-250mm
Capping Machine 130
Label Type Pressure Sensitive Label
Label Size 20-180mm in height, 20-250mm in length
Label Roll Size I.D. 76 mm ,
O.D. 350 mm (Max.)
Conveyor Width 85mm

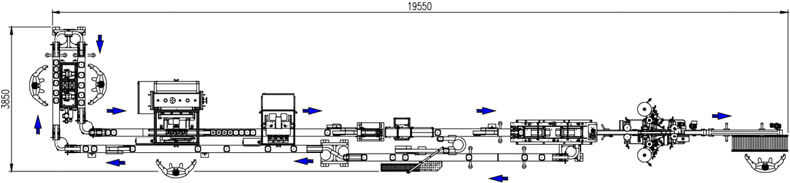

Conveyor Length 19,550mm
