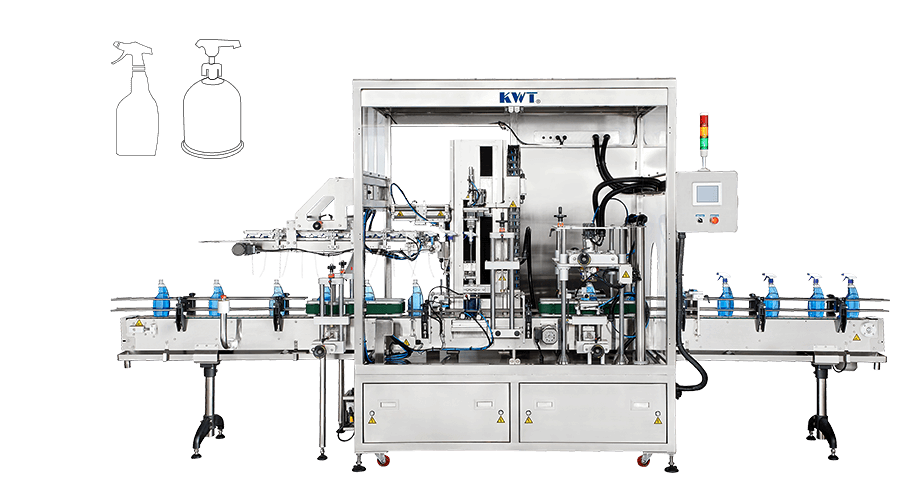

KWT-170 Auto Trigger/ Pump Capper

KWT-170 Auto Trigger/ Pump Capper
KWT-170 Auto Trigger/ Pump Capper
Auto Trigger Cap Capper
  • KWT-170 Auto Trigger/ Pump Capper
  • Auto Trigger Cap Capper
Product Description
REQUEST QUOTE
Product Introduction

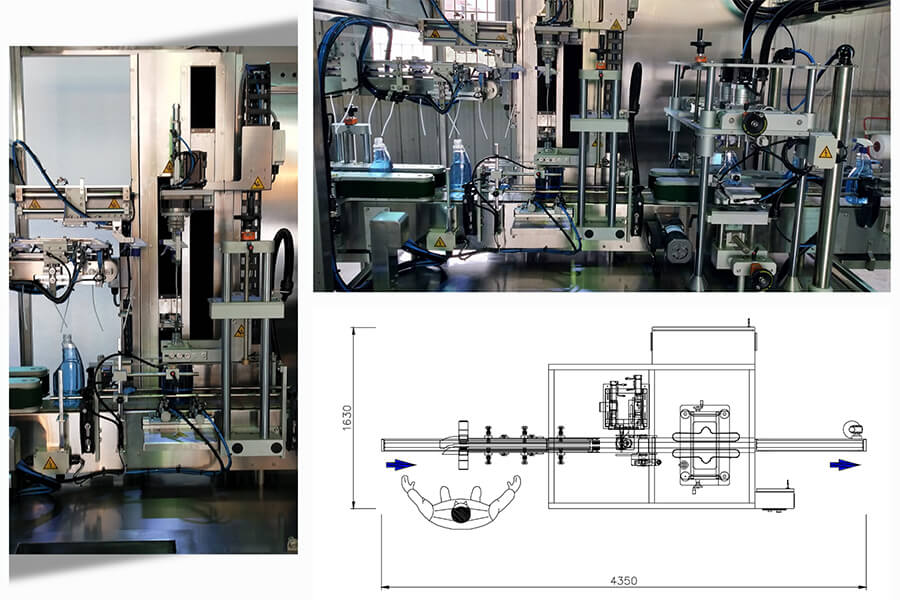

The KWT-170 series represents the pinnacle of automatic capping machines, specifically designed for efficient feeding and capping of trigger caps, pump caps and spray pump caps. These sophisticated bottle capping machines integrate cutting-edge servodrive technology, enabling complete control over the cap application process while facilitating quick and seamless format changes to accommodate different container specifications.
  • Heavy duty stainless steel frame
  • PLC controlled with user-friendly touch screen interface, providing easy access to all operational parameters
  • High-precision trigger straw centering mechanism for accurate alignment in trigger spray capping
  • 2-jaw grippers system for secure cap handling during the spray bottle capping process
  • Servo motor capping mechanism powered by a roller for precise torque control
  • Capping torque is set in the control panel
  • Rapid and uncomplicated format changeover capabilities for various bottle types, including trigger pump bottles
  • 50 products can be stored in memory for recall
  • Bottle height: 140mm-300mm
  • Bottle width (diameter): 50mm-120mm
  • Capacity: ~ 25 BPM
  • Safety guard
