Product Description
proimages/products/KWT-180AS.jpg
REQUEST QUOTE
Product Introduction

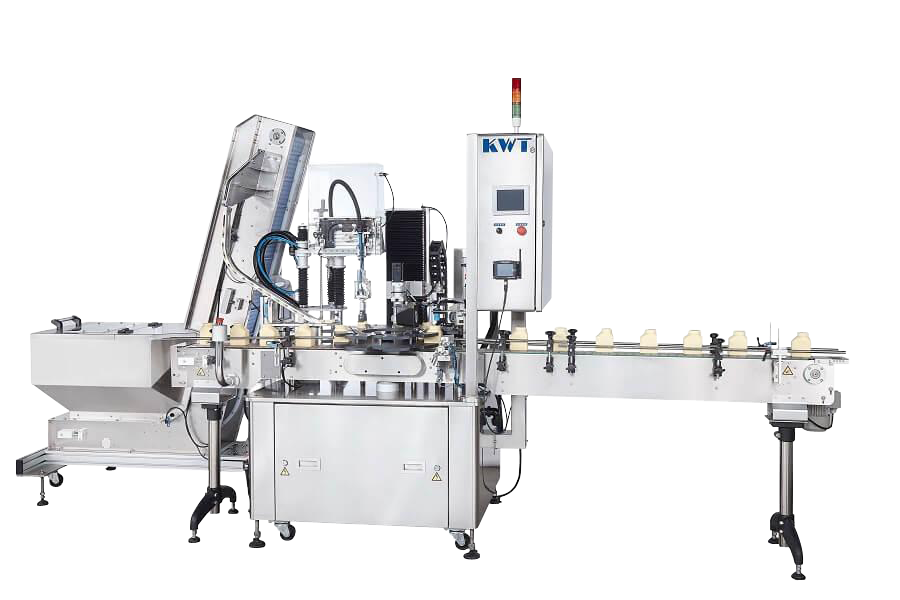

KWT-180 serials are cap chuck capping machine, the pick & place device which picks up the cap from the chute and places it on the container, then capping chuck tightens. It is designed with a star wheel indexing system to control and handle flimsy bottles, the star wheel assists in keeping bottles stationary as torque is applied.

  • Heavy duty stainless steel frame
  • PLC controlled with touch screen panel, easy access to all settings
  • Pick & Place device is driven by servo motor with electrical cylinder
  • Capping head is driven by servo motor
  • Capping torque is set on the control panel
  • Cap sorter unscrambles bulk caps and supplies to the cap chute for fully automatic application. (Vibration or Waterfall)
  • Fast and easy capping head changeover into another cap type
  • 50 products can be stored in memory for recall
  • Bottle height: 80mm-150mm
  • Bottle width (diameter): 40mm-90mm
  • Capacity: ~ 40 BPM
  • Safety guard
  • Cap hopper & elevator
  • Inspection: missing cap / cock cap / missing foil liners
