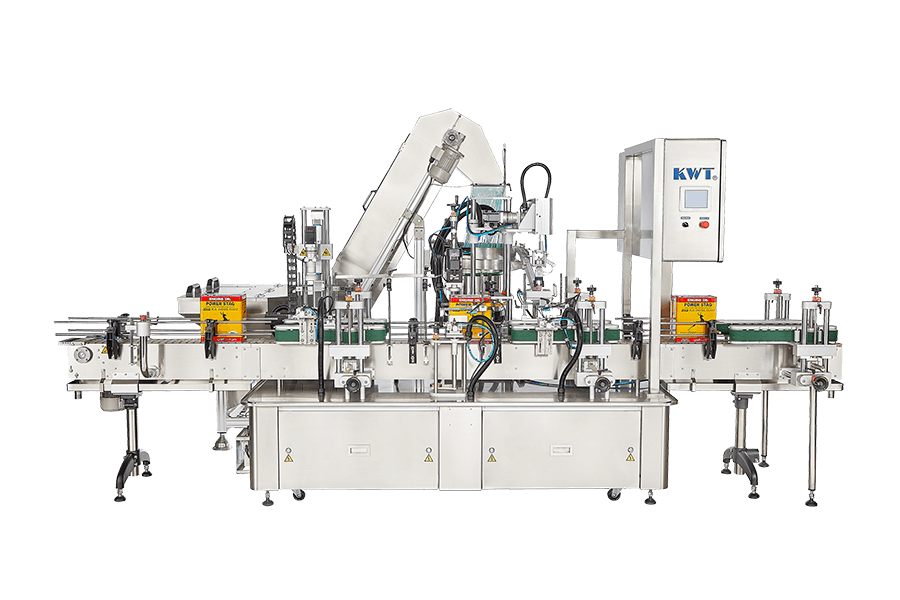

One Head Auto Capping Machine - KWT-151AS
One Head Auto Capping Machine - KWT-180AS
One Head Auto Capper with Waterfall Cap Sorter KWT-180AS
  • One Head Auto Capping Machine - KWT-151AS
  • One Head Auto Capping Machine - KWT-180AS
  • One Head Auto Capper with Waterfall Cap Sorter KWT-180AS
Inquiry
Product Description
proimages/products/KWT-180AS.jpg
Product Introduction

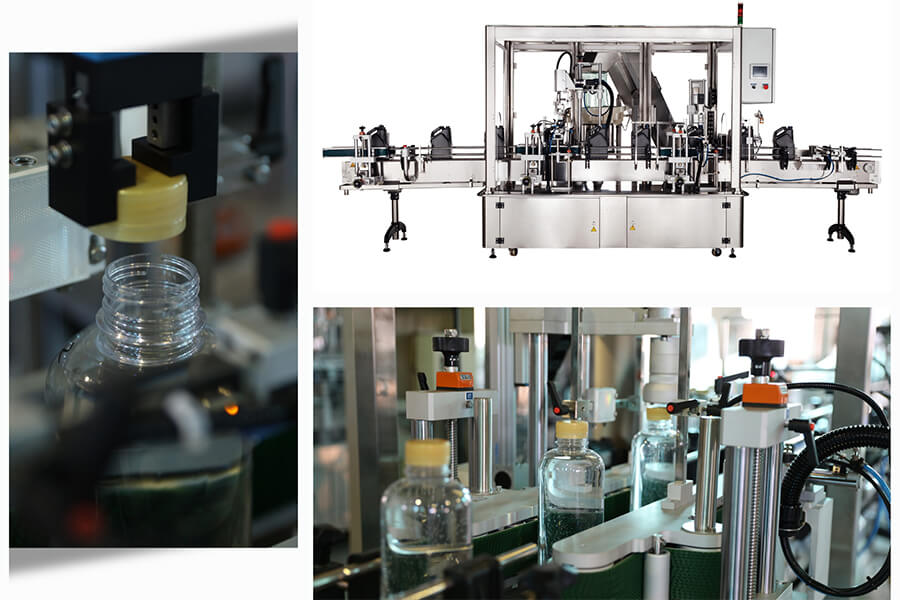

KWT-150 / 180 serials are cap chuck capping machine, the pick & place device which picks up the cap from the chute and places it on the container, then capping chuck tightens. KWT-180 serials are designed with a star wheel indexing system to control and handle flimsy bottles, the star wheel assists in keeping bottles stationary as torque is applied.

  • Heavy duty stainless steel frame.
  • PLC controlled with touch screen panel, easy access to all settings.
  • Pick & Place device is driven by servo motor with electrical cylinder.
  • Capping head is driven by servo motor.
  • Capping torque is set on the control panel.
  • Cap sorter unscrambles bulk caps and supplies to the cap chute for fully automatic application. (Vibration or Waterfall)
  • The vibratory cap sorter unscrambles bulk caps and supplies to the cap chute for fully automatic application.
  • Fast and easy capping head changeover into another cap type.
  • 50 products can be stored in memory for recall.
  • Bottle height: 120mm-350mm
  • Bottle width (diameter): 50mm-150mm
  • Capacity: ~ 40 BPM.
  • Safety guard
  • Cap hopper & elevator
  • Inspection: missing cap / cock cap / missing foil liners
